Wednesday, July 31, 2024

Belimo's Non Fail-Safe Actuators Are Used For Many HVAC Applications

You may be asking, what does non-fail safe mean?  For HVAC actuators “non fail-safe” denotes that the device stays in its last position setting upon power loss or disruption to it. By contrast, a fail-safe actuator returns to a pre-set position.  Non-fail safe actuators have their place in most applications, due to their ability to mount just about anywhere, and integrate with control systems.

Belimo Air Controls produces several different model types for the building controls industry.  Below is quick run-down of their non-fail safe options.  Torque requirements are the main difference between these, but each also has multiple variations for power requirements, signal types and connectivity.

The PM Series - for torque requirements of 1400 in-lbs [160 Nm]

The GM Series - for torque requirements of 360 in-lbs [40 Nm], 90 sq. ft.

The AM Series - for torque requirements of 180 in-lbs [20 Nm], 45 sq. ft.

The NM Series - for torque requirements of 90 in-lbs [10 Nm], 22 sq. ft.

The LM Series - for torque requirements of 45 in-lbs [5 Nm], 11 sq. ft.

The CM Series - for torque requirements of 18 in-lbs [2 Nm], 4.5 sq. ft.

The UMB Series - for torque requirements of 9 in-lbs [1 Nm], 2.25 sq. ft.

The Belimo CMB24-3, offering 18-in lbs of torque, is a Non fail-safe actuator.


Enhancing System Performance

Belimo's actuators are designed to optimize system performance by seamlessly integrating with Building Automation Systems (BAS) through BACnet, Modbus, or MP-Bus protocols. For added convenience, select models feature Near Field Communication (NFC) for swift programming, commissioning, and troubleshooting.

Promoting Energy Efficiency

Belimo's patented technology ensures superior efficiency and reduced power consumption throughout the lifecycle of the product, resulting in significant carbon emission reductions.

Precision and Reliability

Equipped with brushless DC motor technology and controlled by an ASIC (Application-Specific Integrated Circuit), Belimo actuators deliver consistent torque across their entire operational range. This design eliminates performance fluctuations due to temperature changes, supply voltage variations, or speed adjustments.

Belimo's actuators all come with a 5-year warranty.  E-Controls.net offers a vast selection of damper actuators for nearly any HVAC application.  Search our webstore today at https://www.e-controls.net/.

E-Controls.net Is Your Online Source For Building Automation Supplies.


Friday, June 28, 2024

Use Greystone Energy’s SPC Series for Complete Temperature and Humidity Monitoring.

Greystone Energy’s SPC series is a temperature and humidity transmitter that utilizes a pair of sensors in one sleek wall mount enclosure.  For an environmental monitoring and control system the transmitter’s RH sensor monitors RH over a span of 0-100% and enlists a thermistor that is curve-matched to measure temperature.

SPC Series from Greystone


Separate setpoint controls are options for temperature and relative humidity adjustment. Also optional are external communications jack and override switch which includes OCC input. Both temp and RH setpoint constant signals are available on individual outputs (0-5, 0-10 Vdc jumper selectable, or linear 4-20 mA.  The SPC Series boasts a low profile, LCD indication and is offered in voltage and current models.  Accuracy selections are 2, 3 and 5%. Alternate configurations of Greystone’s SPC series are available with 1-4 outputs.

Greystone Energy’s SPC series is a topflight combo transmitter suitable for many different applications, and is available at Your Online Source For Building Automation Supplies, E-Controls.net.  For more information, visit our webstore today.  We offer complimentary UPS Ground shipping throughout the continental U.S. on qualifying orders.

Friday, December 29, 2023

HT1D Series: Senva’s State-Of-The-Art Duct Humidity and Temperature Sensor.

Designed for both the field technician and engineer, Senva’s HT1D series boasts both great stability and reliability in 2 or 3% accuracies.  With the options for temperature transmitters, thermistors and RTD’s, these devices offer a great deal of flexibility.  Along with these offerings, the HT1D series has a solid list of benefits including:

  • Transmitter outputs that are switch selectable (5/10V and 4-20 mA Relative Humidity/Temperature)
  • “Field replaceable” elements; sensor (w/o disturbing conduit) and LCD
  • Optional thermistor outputs for temperature
  • Built-in temperature compensation for relative humidity protecting against temp coefficient errors
  • High measurement accuracy, and repeatability
  • Offset stability
  • Certification options including 8-point calibration with NIST traceability
  • 7-year warranty with a two-year replacement warranty included
Senva HT1D Series


The HT1D supports a wide range of applications like indoor air comfort in HVAC systems while maintaining good quality air as it minimizes mold or other contaminants.  For the measurement of area humidity and temperature, this series was designed to be reliable in high traffic areas like conference rooms, offices and other indoor public spaces, while also providing superior detection in critical environments such as hospitals, nursing homes, and schools.  This is also the series for any industrial/process control areas.

Configure this part to meet whatever your needs are for accuracy, temperature, output type and LCD.  There are 30 different configurations available in our web-store

Sense the Difference with Senva Sensors, designers and producers of a wide range of HVAC peripherals since 2007.  Find the HT1D Series Duct Humidity and Temperature Sensor, as well as most of Senva’s other offerings today at E-Controls.net.  Free UPS shipping in the United States on orders over $100!

E-Controls.net Your Online Source For Building Automation Supplies.

Thursday, November 30, 2023

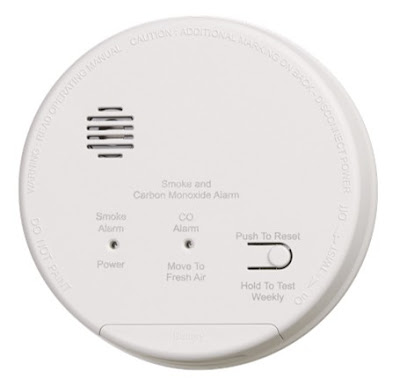

Select the Gentex GN-503 Series For Combination Smoke & Carbon Monoxide Alarm Projects.

In the combination smoke & CO alarm category, there is no better selection to be made than Gentex’s GN-503 Series.  For the evacuation of dwelling units (not limited to hotels, motels, homes, apartments or other commercial occupancies) this series was engineered to eliminate nuisance alarms while provide unmatched performance wherever smoke and carbon monoxide protection is a priority.

Equipped with a self test feature that identifies whether the alarm is properly functioning, the GN-503 Series also includes 9V alkaline battery as back-up in the event of power loss.  The design enlists a battery drawer for easy replacement, without the need for removing it from its wall or ceiling position.




Some of the most beneficial features include:

  • State of the art photoelectric smoke sensing
  • State of the art electrochemical CO sensing
  • A horn frequency of 3100 Hz
  • One or two sets (either “F” or “FF” model) of Form A/Form C contacts for activation during smoke and/or CO events.
  • Self test and functional test features
  • Relay contacts to operate upon the battery back-up
  • Quick release wiring harness
  • Red LED (solid state) for smoke presence warning
  • Low/missing battery warning
  • CO sensor end of life signal
  • One year warranty



Gentex Corporation, known in the industry as the “Photoelectric Pioneers” as creators of the world’s first dual-cell photoelectric smoke alarms, was initially founded for the design and production of quality fire-protection equipment.  With their 1974 breakthrough in this technology, Gentex has continued the manufacturing of “smarter” signaling products which can found in hotels, campus dormitories, hospitals and schools throughout the world.

Find this series, other Gentex fire protection products or any of vast assortment of BAS products at E-Controls.net today.  Your Online Source For Building Automation Supplies

Tuesday, October 31, 2023

Siemens GCA Series Spring Return Actuators; Quality Matched With Reliability.

Siemens, with 150 years of experience in the HVAC industry, continues to produce the devices you’ve come to depend on for reliability, performance and quality.

For projects that require spring return actuators, consideration should be given to the Siemens GCA Series.  Built for damper areas of approximately 36 sq. ft, these actuators are rugged, offering 142 in-lbs of torque, built-in conduit connections and lightweight metal housing for unsurpassed durability.  These are designed to handle over 60,000 full strokes and 1.5 million repositions at rated torque and temperature.

The Siemens GCA161.1U

There is a GCA series configuration designed to serve your needs.  For control signal, there are options for On/Off (2-position), Floating (3-position) or Modulating (0-10 VDC, or 4-20 mA).  Other options include power supply, adjustable start/span (with 2 auxiliary switches), feedback and electronic tandem control.

The GCA models boast several features including:

  • Brushless DC motors to gain reliable control of speed, braking and torque.
  • Fail-Safe spring return that is bi-directional
  • Manual override
  • Self-centering shaft coupling (patented)
  • Span adjustment and offset models are available
  • cUL and UL listed

A number of accessories are also available that include different mounting kits, crank arms, tandem mount brackets, shaft adapters, NEMA rated weather shields and heater kits.

Siemens produces their actuators with versatility in mind, covering a wide variety of HVAC applications including rooftop units (RTUs), vortex dampers, mixing boxes, zone isolation dampers, inlet vane dampers, return air dampers, and outside air dampers including the supply, exhaust and discharge variety.

Find a Siemens solution to fulfill your project needs today by shopping at E-Controls.net.

E-Controls.net Your Online Source for Building Automation Supplies.

Friday, September 29, 2023

Product Spotlight: Johnson Controls V46 Series of pressure actuated modulating valves.

Produced for both refrigerant systems as well as saltwater applications, the V46 series from Johnson Controls features numerous benefits.  This series was designed to be “direct-acting” with quick open option on increased pressure, and “reverse-acting” to close on pressure increase.  These devices control water flow to a condenser by sensing the changes in pressure through a refrigerant cycle.

The valve design is pressure balanced so that the setpoint is separate from the water inlet pressure.  These include pressure resistant bellows where refrigerant pressure grows up to 28-bar.  Likewise, the V46 series is pressure-actuated for fast and direct variations in pressure. They offer a high flow capacity with their smaller dimensions, in both angled body types and straight line, available in 3/8”, ½” and ¾” for a high Kv value.

The V46 pressure actuated valve with angled body type

Other features include:

Reduced Hysteresis: The close fitting and sliding parts are within water passages.

Easily Disassembled/Replaced:  Valve is designed for easy repairs “in line”.

Durability: bodies and monel parts are made of special bronze, excellent for sea water applications.

Power Elements:  Some models include stainless steel bellows for applications with ammonia filled equipment.

Connection Styles Options:  A wide range of types to meet various requirements.

Nickel Plated Seats:  available on valve sizes of 3/8", ½" and ¾” openings, they offer resistance against corrosion, cavitation and erosion.

Control Action:  Direct or reverse action can be factory changed to suit your application.

JCI notes that all of the V46 series regulating valves were designed as operating devices only.  In several applications where valve failure might result in personal injury or loss of property, it is required to install a separate safety shut off valve.

For all of your pressure actuated modulating valves or many other products produced by Johnson Controls Inc, visit E-Controls.net, today!

E-Controls.net.  Your Online Source For Building Automation Supplies.

Thursday, August 31, 2023

Belimo's NFB Series Damper Actuators

Belimo, the industry leader in Air Flow Controls, sets the standard for damper actuators in the HVAC market.  Their NFB Series is a type of “Mechanical Fail-Safe” which means these include an internal mechanism that stores energy to drive an actuator motor to it’s predetermined ‘safe’ position in the event of power loss.

The New Generation NFB/NFX series of spring return actuators was designed for several applications including control valves, make-up air units, retrofit, replacement and control dampers designed up to 22 square feet.

The NFB24 Damper Actuator

Here are some of the benefits and features of the series:

  • Torque: With 50% more than previously offered, the NFB series now boasts 90 in-lbs of torque.
  • Smaller Housing:  The re-design of the body features a reduced footprint with the edge to shaft-center distance shortened by .75” which makes the device easier to install in tighter spaces.
  • Manual Override:  Now standard on all NF Series configurations.
  • Power: UPS can accept 24 VAC (up to 24) VAC.  The actuator is ideal for all power supply voltages.
  • Cable length options: Now offered are 3’, 10’ and 16’; same as the non-spring return models.
  • Mechanical limit stop:  This is now built-in, and no longer a separate accessory.

Belimo Damper Actuators provide versatile operation and yield energy savings with their low power usage.  They perform reliably and safely, by utilizing rugged components.  They communicate directly with BAS (Building Automation Systems) via BACnet, Modbus or MP-Bus.  Finally, they offer unsurpassed accuracy and control without loss in their performance due to supply voltage, temperature, or speed.

Since 1975, Belimo Air Controls has been the leader in field devices for the HVAC industry.  Find the Belimo NFB Series or any other damper actuator the produce at E-Controls.net

E-Controls.net Your Online Source For Building Automation Supplies.
